433Mhz Universal Wireless Remote Control Switch DC 12V 4CH relay Receiver Module For 4CH 1527 learning code 433 Mhz Transmitter

433Mhz Universal Wireless Remote Control Switch DC 12V 4CH relay Receiver Module For 4CH 1527 learning code 433 Mhz Transmitter

  • Product Code: 32946474096
  • Availability: In Stock
  • $17.47

  • Ex Tax: $17.47
Item specifics
  • Support APP: No
  • Channel: 4
  • Use: Electric Door,Automated curtains,Lighting,Switch,Universal
  • Frequency: 433 MHz
  • Model Number: KR1204-4
  • Wireless Communication: RF
  • Brand Name: QIACHIP
  • Package: No
  • Quiescent Current: 10A
  • Working Voltage: 12V
  • Decoding: 1527
  • Working temperature: -30~80
Product Description
Package Included:

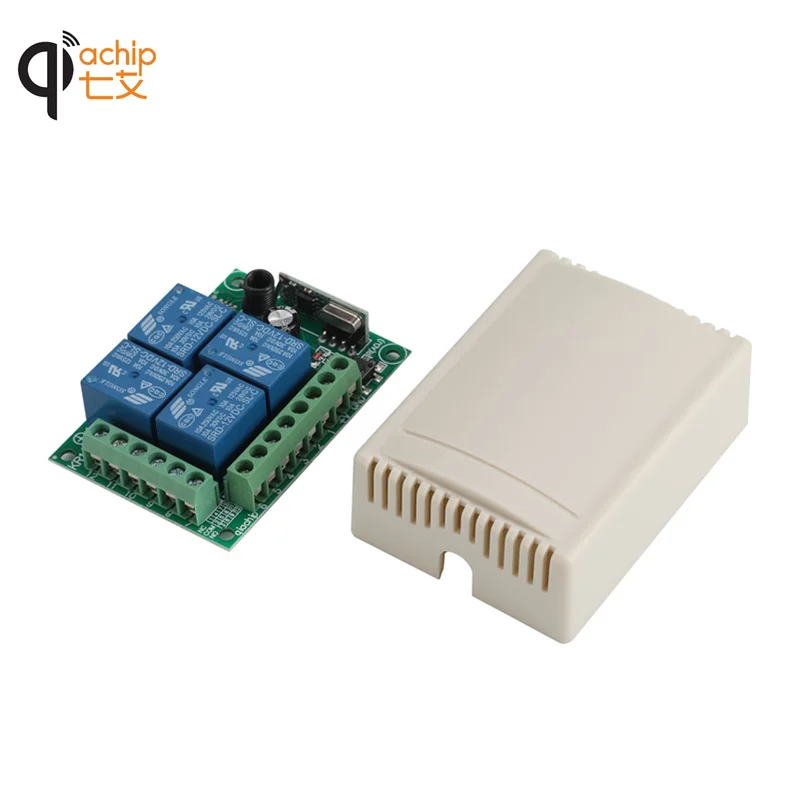

Receiver module (KR1204-4    )      * 1pcs (include Shell)
KR1204-800800


SPECIFICATION
1. Working Voltage:DC12V
2. Quiescent Current:5mA
3. Working Frequency:433Mhz/315Mhz
4. Receiving Sensitivity:-104dBm
5. Function option:Momentary/Toggle/Latching
6. Modulation Mode:ASK
7. Matching Mode: Intelligent Learning code 1527
8. Output Mode:Dry contact /Voltage output
9. Shell:Yes
10. Working temperature : -30~+80
11. PCB dimension:68.2x48.2(mm)

1204

IMG_1356
Compatible with remote control coding: 1527 encoding
HTB1eq.oJFXXXXb.XpXXq6xXFXXX4
433Mhz-Universal-Wireless-Remote-Control-Switch-DC12V-4CH-relay-Receiver-Module-With-4-channel-RF-Remote (2)
JXT
OPERATION

1. Momentary Mode: pressing one time the learning key button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote\'s LED indicator informs about setting momentary mode successfully .
2. Toggle Mode: pressing two times the learning key button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote\'s LED indicator informs about setting toggle mode successfully .
3. Latching Mode: pressing three times the learning key button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press first remote button ,follow on second remote button , signaling three times by remote\'s LED indicator informs about setting latching mode successfully ( first button stands for on , second button stands for off ).
4. 2CH momentary + 2CH Toggle : pressing four times the learning key button on the receiver board(Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote\'s LED indicator informs about setting 5-second delay successfully .
5. 2CH Momentary + 2CH Latching : pressing five times the learning key button on the receiver board ( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote\'s LED indicator informs about setting 10-second delay successfully .
6. 2CH Toggle + 2CH Latching : pressing six times the learning key button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote\'s LED indicator informs about setting 15-second delay successfully .
7. 2CH Latching + 2CH Latching : pressing seven times the learning key button on the receiver board( Led indicator on receiver board will signaling simultaneously ),then press any of the remote button , signaling three times by remote\'s LED indicator informs about setting 15-second delay successfully .
8. Deleting existing remote controls data: pressing eight times the learning key button on the receiver board , the LED indicator on receiver board will flash for eight times , the existing remote controls are deleted successfully .

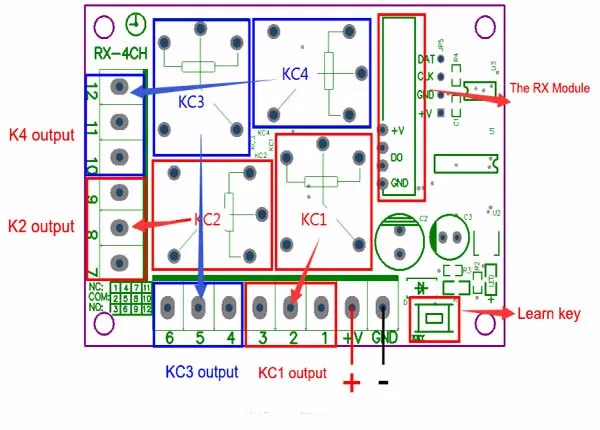

TERMINAL INSTRUCTIONS

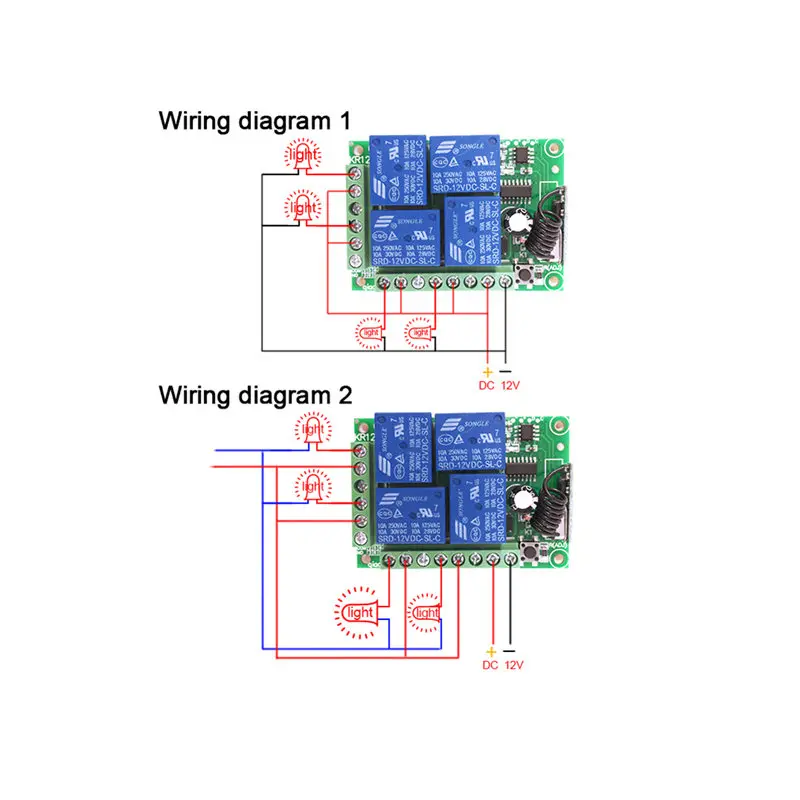

+V  -  Positive pole input
GND -  Negative pole input
1   -KC1 Normal Closed of relay
2   -KC1 Common of relay
3   -KC1 Normal Open of relay
4   -KC3 Normal Closed of relay
5   -KC3 Common of relay
6   -KC3 Normal Open of relay
7   -KC2 Normal Closed of relay
8   -KC2 Common of relay
9   -KC2 Normal Open of relay
10   -KC4 Normal Closed of relay
11   -KC4 Common of relay
12   -KC4 Normal Open of relay

NOTES

1. Please do not charged operation, you should shut off the power, and operation after testing and correct electricity.
2. Please promptly change battery when remote control voltage is insufficient,  (when the battery voltage is insufficient, generally get close transmitting )
3. Please pay attention to avoid metal mask,large equipment ,strong interference electromagnetic filed when using wireless RF products,and avoid too short distance between the remote control and receiver board .
4. Please avoid abnormal using of the product.Abnormal using will reduce product performance and life, when seriously it may damage the products and even make danger for your safe .
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.08kg (0.18lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
Item specifics
Brand Name QIACHIP
Channel 4
Decoding 1527
Frequency 433 MHz
Model Number KR1204-4
Package No
Quiescent Current 10A
Support APP No
Use Electric Door,Automated curtains,Lighting,Switch,Universal
Wireless Communication RF
Working Temperature -30~80
Working Voltage 12V
